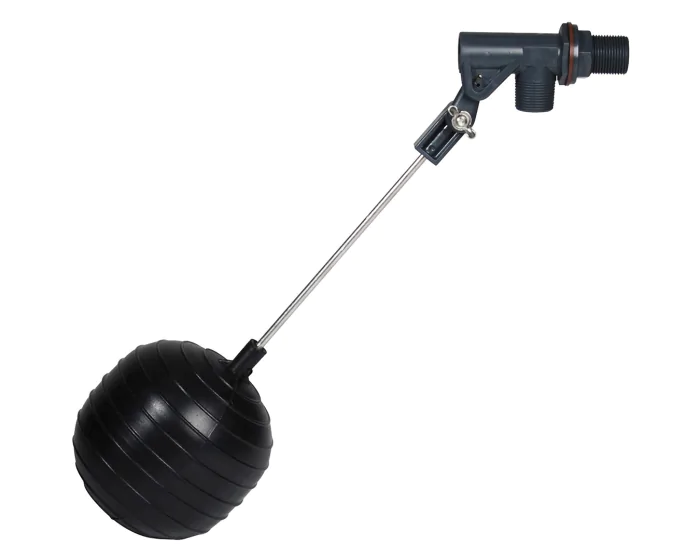

PVC-U float valve RF1
The RF1 series float valve consists of a PVC-U body, EPDM gasket, stainless steel lever, PE float and BSP threaded connections. It can be used to control the level of water, acid or alkaline fluid tanks.
Documentation
Certificate of Conformity
pdf - 202.5 ko
Data sheet RF1-PVCU / Gaskets EPDM Float valve
pdf - 212.8 ko
Details
Option certificate 3.1 | No |
---|---|
Torque (Nm) | 106.4 |
Float diameter (mm) | 125 |
Gasket | EPDM |
Body material | PVC-U |
PS (bar) | 10 |
Connections | BSP MM |
TS max (°C) | 60 |
TS min (°C) | 0 |
Warranty period | 1 year |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
PVC-U float valve RF1 DN15 d20 PE float/EPDM gaskets | 6200RT015 | €34.68 |
17 pcs available in stock
|
|
PVC-U float valve RF1 DN20 d25 PE float/EPDM gaskets | 6200RT020 | €37.10 |
16 pcs available in stock
|
|
PVC-U float valve RF1 DN25 d32 PE float/EPDM gaskets | 6200RT025 | €61.00 |
8 pcs available in stock
|
|
PVC-U float valve RF1 DN32 d40 PE float/EPDM gaskets | 6200RT032 | €150.90 |
14 pcs available in stock
|
|
PVC-U float valve RF1 DN40 d60 PE float/EPDM gaskets | 6200RT040 | €195.72 |
Currently not in stock
|
|
PVC-U float valve RF1 DN50 d63 PE float/EPDM gaskets | 6200RT050 | €347.18 |
Currently not in stock
|
|
PVC-U float valve RF1 DN65 d75 PE float/EPDM gaskets | 6200RT065 | €666.28 |
2 pcs available in stock
|
|
PVC-U float valve RF1 DN80 d90 PE float/EPDM gaskets | 6200RT080 | €675.00 |
3 pcs available in stock
|
