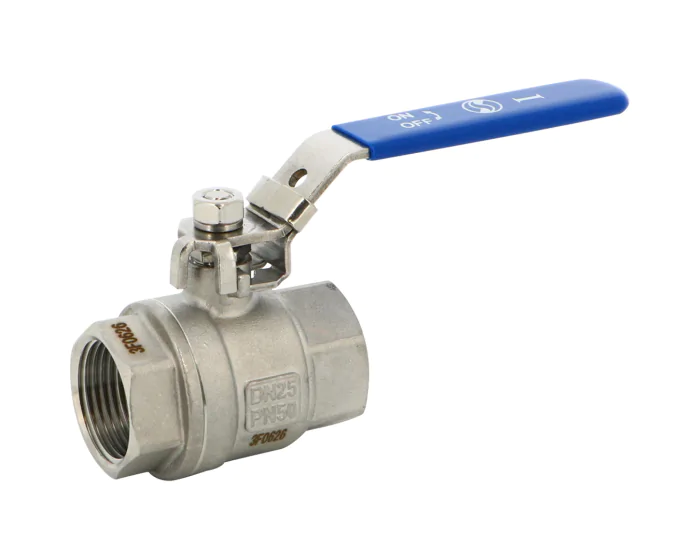

St. steel ball valve 7152 2 pc body BSP S-First + decompression hole
The series 7152 2-piece body ball valve is made of stainless steel with decompression hole, BSP female/female threaded connection, PTFE seat and PTFE packing gland. It is suitable for chemical and pharmaceutical industries.
Documentation
Certificate of Conformity
pdf - 209.9 ko
Notice montage robinet à tournant sphérique 2 pièces taraudé
pdf - 123.7 ko
Installation operating manual ball valve 2 pieces
pdf - 110.4 ko
Details
Option certificate 3.1 | Yes |
---|---|
CE risk category | III Module H |
Thread standard | ISO 228-1 |
Tightness test standard | EN 12266-1 Rate A |
Stem sealing material | PTFE gland packing |
Opening device | Handle |
Application | Industry |
Shaft/stem matérial | Stainless steel AISI 316 |
Lockable | Yes |
Torque (Nm) | 6.0 |
Diameter of passage | 15.00 |
DN | 15 |
Face to Face (mm) | 745.0 |
Fluid | Compressed air |
Kv (m³/h) | 11.2 |
Body material | Stainless steel CF8M (1.4408) |
Number of ways | 2 |
Bore | Full |
ISO pad 5211 | No |
Packing gland | Yes |
PS (bar) | 8 |
Connections | BSP FF |
Seats | PTFE |
Ball material | Stainless steel ASTM A351 CF8M |
TS max (°C) | 180 |
TS min (°C) | -20 |
Ball valve design | 2-piece body |
Warranty period | 2 years |
CE | Yes |
Handle material | Stainless steel AISI 304 |
Handle type | Blue lever |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Stainless steel ball valve 7152 2 pce body BSP +decompression hole 1/4'' | 715202 | €20.20 |
3526 pcs available in stock
|
|
Stainless steel ball valve 7152 2 pce body BSP +decompression hole 3/8'' | 715203 | €20.90 |
Currently not in stock
|
|
Stainless steel ball valve 7152 2 pce body BSP +decompression hole 1/2'' | 715204 | €25.68 |
2367 pcs available in stock
|
|
Stainless steel ball valve 7152 2 pce body BSP +decompression hole 3/4'' | 715205 | €32.88 |
521 pcs available in stock
|
|
Stainless steel ball valve 7152 2 pce body BSP + decompression hole 1'' | 715206 | €44.08 |
442 pcs available in stock
|
