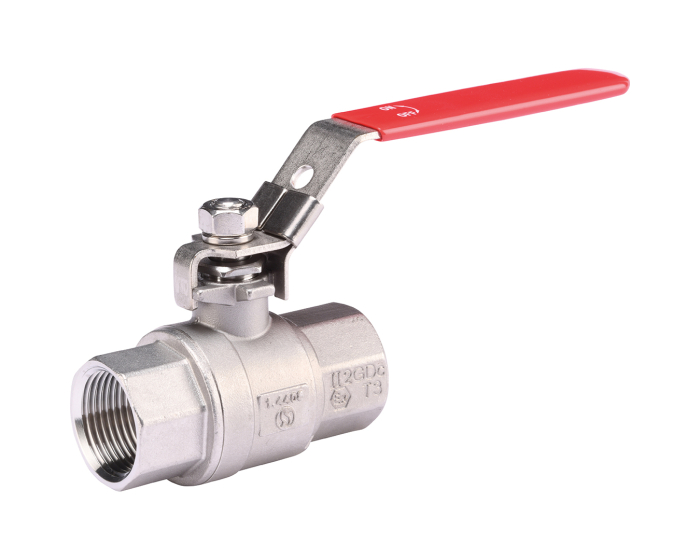

Stainless steel ball valve 704 2-piece body NPT female/female

Discover the Sferaco 704 series ball valve, in stainless steel, with long thread NPT connection and DIN 3202 M3 face to face, for the chemical, petrochemical, hydraulic, pharmaceutical industries and ATEX environment.
Choose your configuration
See all configurations
Réf.
CONF704004
(Indicative price) €21.55
Details
Details
Option certificate 3.1 Yes
CE risk category III Module H
EN face-to-face standard EN 16722 M3 Series
DIN face-to-face standard DIN 3202 M3
Face to face standard EN 16722 M3. DIN 3202 M3
Thread standard ANSI B1.20.1
Tightness test standard ISO 5208. Rate A
Stem sealing material PTFE gland packing
Antistatic device Yes
Opening device Handle
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
ATEX compatible Yes
Torque (Nm) 3.0
Diameter of passage 15.00
DN 15
Face to Face (mm) 1050.0
Fluid Acids
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
ISO pad 5211 No
Packing gland Yes
PS (bar) 63
Connections NPT FF
Seats PTFE
Ball material Stainless steel ASTM A351 CF8M
TS max (°C) 180
TS min (°C) -50
Ball valve design 2-piece body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Stainless steel ball valve 704 2 piece body NPT 1/4'' 704002 €21.55
1248 pcs available in stock
Stainless steel ball valve 704 2 piece body NPT 3/8'' 704003 €26.12
504 pcs available in stock
Stainless steel ball valve 704 2-piece body NPT 1/2'' 704004 €33.38
40 pcs available in stock
Stainless steel ball valve 704 2 piece body NPT 3/4'' 704005 €38.55
678 pcs available in stock
Stainless steel ball valve 704 2 piece body NPT 1'' 704006 €63.62
708 pcs available in stock
Stainless steel ball valve 704 2 piece body NPT 1''1/4 704007 €100.70
576 pcs available in stock
Stainless steel ball valve 704 2 piece body NPT 1''1/2 704008 €139.30
372 pcs available in stock
Stainless steel ball valve 704 2 piece body NPT 2'' 704009 €215.05
323 pcs available in stock
