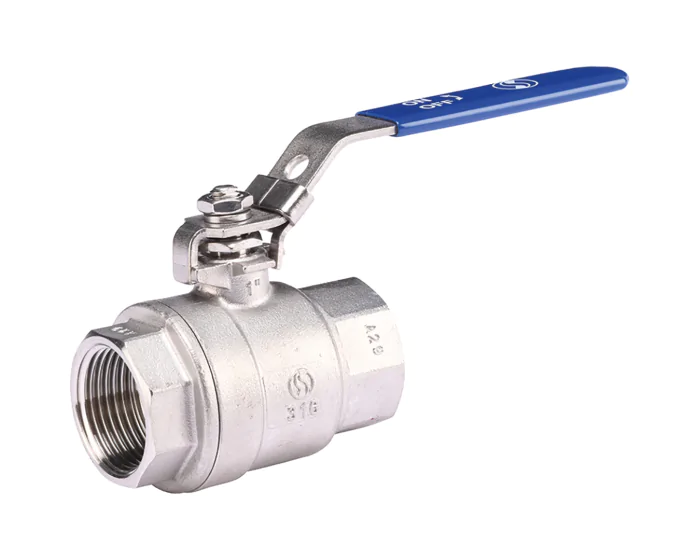

Stainless steel ball valve 715 2-piece body BSP female/female

The series 715 2-piece body ball valve is made of stainless steel, glass-filled PTFE seat, BSP female/female threaded ends and anti-blowout stem. It is suitable for petrochemical, compressed air, pharmaceutical and chemical industries.
Choose your configuration
See all configurations
Réf.
CONF715004
(Indicative price) €47.88
Details

Our reference 715 is a very common industrial valve. This two-piece body ball valve comes in sizes ranging from 1/4" to 4". With its body made of ASTM A351 CF8M stainless steel and its threaded female-female BSP connections, this two-piece body ball valve is suitable for use through a wide range of temperatures (-20 °C to +180 °C), and with a maximum allowable pressure of 63 bar.

This robust and reliable plumbing item also shows a number of specific characteristics, such as:

- Full bore

- PTFE seat

- Anti-blowout stem

- Blue flat lever

- PTFE gland packing

- Locking device

- Stainless-steel solid ball

Our reference 715 is perfect for use with all compatible common fluids such as utilities, process fluids, and all general uses in industry. It is then widely employed in the chemical, petrochemical, and pharmaceutical sectors, in hydraulic installations, or even compressed air systems.


Details
Details
Option certificate 3.1 Yes
CE risk category II Module D1
Thread standard ISO 228-1
Tightness test standard EN 12266-1 Rate A
Stem sealing material PTFE gland packing
Opening device Handle
Lockable Yes
Torque (Nm) 8.0
Diameter of passage 15.00
DN 15
Face to Face (mm) 750.0
Fluid Acids
Number of ways 2
Bore Full
ISO pad 5211 No
PS (bar) 63
Connections BSP FF
TS max (°C) 180
TS min (°C) -20
Ball valve design 2-piece body
Warranty period 2 years
CE Yes
Handle material Stainless steel AISI 304
Handle type Blue lever

Configurations

Product Reference Price Stock
Produit
Stainless steel ball valve 715 2 piece body BSP 1/4''
Produit
Stainless steel ball valve 715 2 piece body BSP 3/8''
Produit
Stainless steel ball valve 715 2-piece body BSP 1/2''
Produit
Stainless steel ball valve 715 2 piece body BSP 3/4''
Produit
Stainless steel ball valve 715 2 piece body BSP 1''
Produit
Stainless steel ball valve 715 2 piece body BSP 1''1/4
Produit
Stainless steel ball valve 715 2 piece body BSP 1''1/2
Produit
Stainless steel ball valve 715 2 piece body BSP 2''
Produit
Stainless steel ball valve 715 2 piece body BSP 2''1/2
Produit
Stainless steel ball valve 715 2 piece body BSP 3''
Produit
Stainless steel ball valve 715 2 piece body BSP 4''

11 Item(s)
