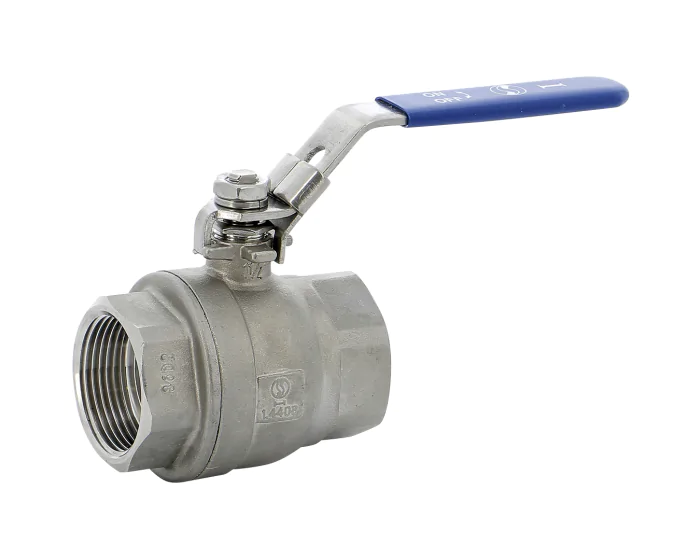

Stainless steel ball valve 7151 2-piece body BSP female/female S-First
The series 7151 2-piece body ball valve, is made of stainless steel, BSP female/female threaded connection, with lockable handle and anti-blowout stem. It is suitable for hydraulic installations and industry applications.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Torque (Nm) | 6.0 |
| Diameter of passage | 15.00 |
| DN | 15 |
| Face to Face (mm) | 560.0 |
| Fluid | Acids |
| Kv (m³/h) | 11.2 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Blue lever |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Stainless steel ball valve 7151 2 piece body BSP S-First 1/4'' | 715102 | €14.22 |
352 pcs available in stock
|
|
| Stainless steel ball valve 7151 2 piece body BSP S-First 3/8'' | 715103 | €14.48 |
367 pcs available in stock
|
|
| Stainless steel ball valve 7151 2-piece body BSP S-First 1/2'' | 715104 | €16.52 |
570 pcs available in stock
|
|
| Stainless steel ball valve 7151 2 piece body BSP S-First 3/4'' | 715105 | €21.15 |
Currently not in stock
|
|
| Stainless steel ball valve 7151 2 piece body BSP S-First 1'' | 715106 | €32.70 |
1771 pcs available in stock
|
|
| Stainless steel ball valve 7151 2 piece body BSP S-First 1''1/4 | 715107 | €50.60 |
2760 pcs available in stock
|
|
| Stainless steel ball valve 7151 2 piece body BSP S-First 1''1/2 | 715108 | €71.08 |
2136 pcs available in stock
|
|
| Stainless steel ball valve 7151 2 piece body BSP S-First 2'' | 715109 | €117.00 |
625 pcs available in stock
|
|
| Stainless steel ball valve 7151 2 piece body BSP S-First 2''1/2 | 715110 | €236.05 |
260 pcs available in stock
|
|
| Stainless steel ball valve 7151 2 piece body BSP S-First 3'' | 715111 | €341.95 |
21 pcs available in stock
|
|
| Stainless steel ball valve 7151 2 piece body BSP S-First 4'' | 715112 | €625.55 |
7 pcs available in stock
|
