Stainless steel ball valve 719 2-piece body BW Forged 800lbs
2-piece body series 719 Sferaco ball valve in stainless steel with welding BW or SW connection and 100mm straight ends, ATEX protection and fire safety, for oil and gas industries.

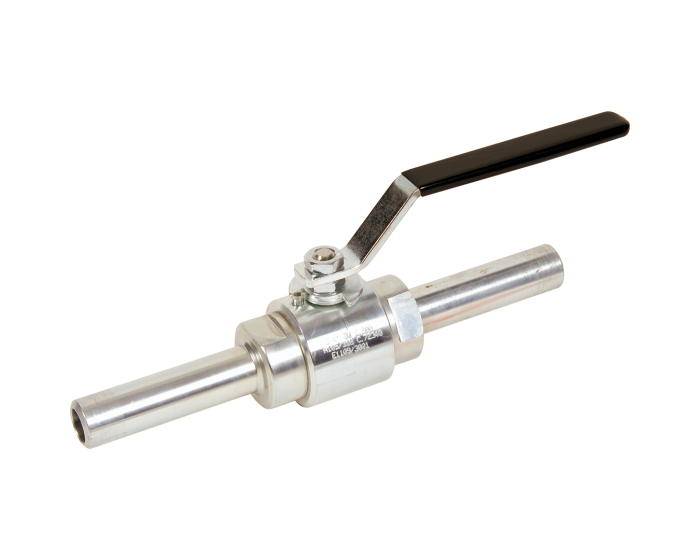

![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/7/1/719-vanne-sphere-inox-2pieces-800lbs-embout.jpg)
Documentation
Details
DN inches NPS | 1/2'' |
---|---|
Option certificate 3.1 | Yes |
CE risk category | III Module B+C2 |
NACE MR0175 | Yes |
Fire safe standard | BS 6755-2 |
Tightness test standard | API 598 |
Stem sealing material | Graphite |
Antistatic device | Yes |
Steam | Yes |
Opening device | Handle |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel ASTM A479 type 316L |
ATEX compatible | Yes |
Diameter of passage | 15.00 |
Face to Face (mm) | 2275.0 |
Fluid | Hydrocarbons. gas |
Body material | Stainless steel F316/F316L |
Number of ways | 2 |
Bore | Full |
ISO pad 5211 | No |
PS (bar) | 132 |
Seats | PTFE-Graphite |
Ball material | Stainless steel ASTM A276 316L |
TS max (°C) | 180 |
TS min (°C) | -30 |
Ball valve design | 2-piece body |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
CE | Yes |
Handle material | Carbon steel |
Handle type | Black lever |
Fire safe | Yes |
