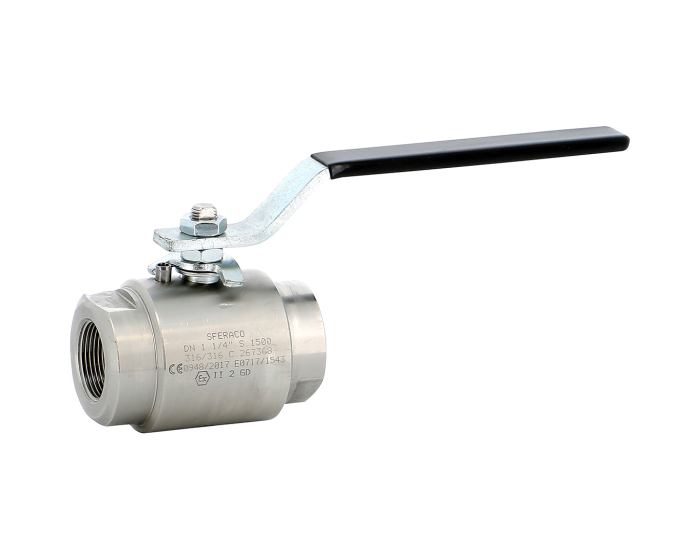

Stainless steel ball valve 735 2-piece body Forged 1500lbs

Syveco offers the Sferaco 734 series ball valve, 2-piece body, made of forged stainless steel, Class 1500, for shutting off fluids in oils and gas industry. NPT and BSP connections are available.
Choose your configuration
See all configurations
Réf.
CONF735004
(Indicative price) €298.48
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
CE risk category III Module B+C2
NACE MR0175 Yes
Thread standard ISO 228-1
Tightness test standard API 598
Stem sealing material FKM O-ring
Antistatic device Yes
Steam Yes
Opening device Handle
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel ASTM A479 type 316L
Lockable No
ATEX compatible Yes
Diameter of passage 15.00
Face to Face (mm) 1050.0
Fluid Hydrocarbons. gas
Body material Stainless steel F316/F316L
Number of ways 2
Bore Full
ISO pad 5211 No
PS (bar) 255
Seats PEEK
Ball material Stainless steel ASTM A276 316L
TS max (°C) 250
TS min (°C) -30
Ball valve design 2-piece body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Handle material Carbon steel
Handle type Black lever

Configurations

Product Reference Price Stock
Produit
Stainless steel ball valve 735 2 piece body BSP Forged 1500lbs 1/4''
Produit
Stainless steel ball valve 735 2 piece body BSP Forged 1500lbs 3/8''
Produit
Stainless steel ball valve 735 2-piece body BSP Forged 1500lbs 1/2''
Produit
Stainless steel ball valve 735 2 piece body BSP Forged 1500lbs 3/4''
Produit
Stainless steel ball valve 735 2 piece body BSP Forged 1500lbs 1''
Produit
Stainless steel ball valve 735 2 piece body BSP Forged 1500lbs 1''1/4
Produit
Stainless steel ball valve 735 2 piece body BSP Forged 1500lbs 1''1/2
Produit
Stainless steel ball valve 735 2 piece body BSP Forged 1500lbs 2''
Produit
Stainless steel ball valve 735 2 piece body NPT Forged 1500lbs 1/4''
Produit
Stainless steel ball valve 735 2 piece body NPT Forged 1500lbs 3/8''
Produit
Stainless steel ball valve 735 2 piece body NPT Forged 1500lbs 1/2''
Produit
Stainless steel ball valve 735 2 piece body NPT Forged 1500lbs 3/4''
Produit
Stainless steel ball valve 735 2 piece body NPT Forged 1500lbs 1''
Produit
Stainless steel ball valve 735 2 piece body NPT Forged 1500lbs 1''1/4
Produit
Stainless steel ball valve 735 2 piece body NPT Forged 1500lbs 1''1/2
Produit
Stainless steel ball valve 735 2 piece body NPT Forged 1500lbs 2''

16 Item(s)
